혁신적이고 비용 효율적 슬유잉 드라이브를 제공하기
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | HangTuo |
| 인증: | CE, ISO9001 |
| 모델 번호: | SE21” |
| 최소 주문 수량: | 1개 부분 |
|---|---|
| 가격: | USD 280~504 / pc |
| 포장 세부 사항: | 합판 박스 |
| 배달 시간: | 15~45 일 |
| 지불 조건: | L/C (신용장), 전신환, 웨스턴 유니온 |
| 공급 능력: | 달 당 2000 PC |
| 재료: | 50Mn, 42CrMo | 모델: | SE21” |
|---|---|---|---|
| 기어 비율: | 125:1 | 정격 출력 토크: | 16 kNm |
| 토크를 기울기: | 205 kNm | 효율: | 40% |
| 색: | 요청대로 RAL 9006 또는 | ||
| 하이 라이트: | 21 인치 다수 드라이브 트렌스미션,CSP 다수 드라이브 트렌스미션,단일축 다수 드라이브 트렌스미션 |
||

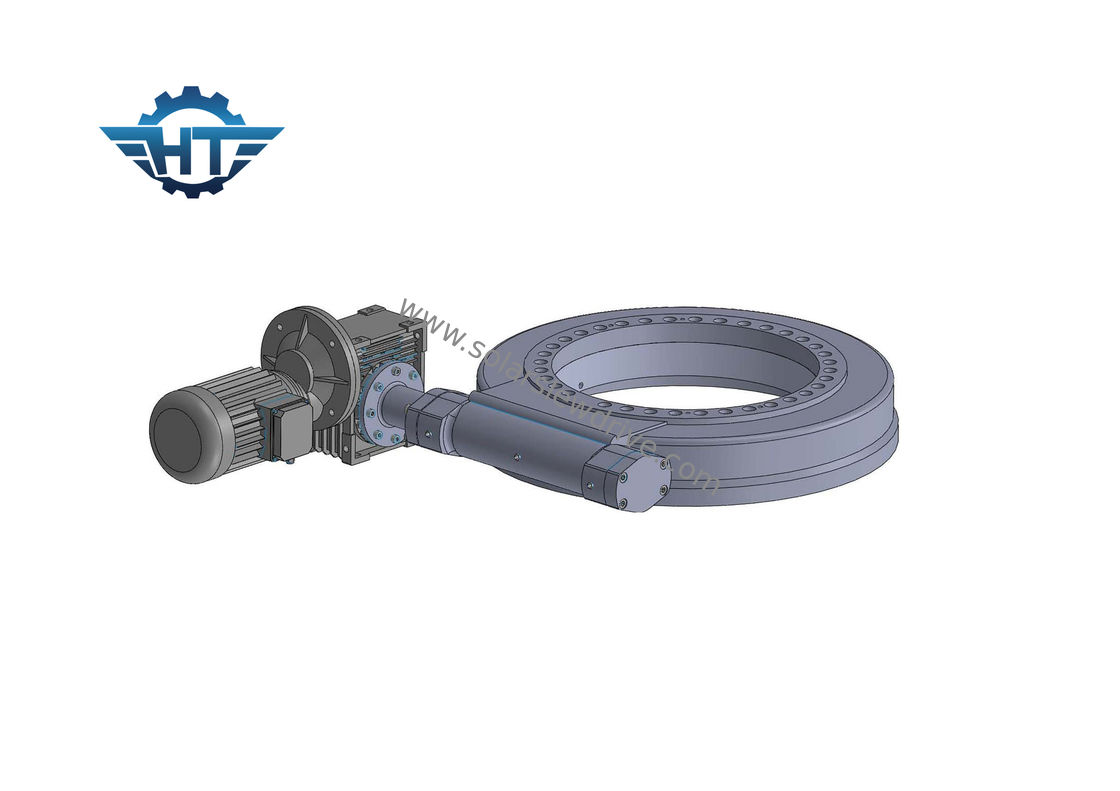

21 Inch Single Axis Slew Drive Gearbox, Self-Locking, Strong Torque, Customized Size For CSP
Product Descripition
By adopting slewing bearing as its corecomponent,slewing drive can bear axial force, radial force and tilting moment simultaneously. Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform,solar tracking systems, cpv, csp and wind power systems.
Advantages
Slewing drive has the advantage for saving space in facilities,max load capacity in a compact design,extensive lifespan, reduced maintenance costs.
Competitive Price
We can give customers the most competitive price to meet your budget.
Fast Delivery
We are a big professional manufacturer with advanced facilities and more than 10 years experience.
After-sale Service
We have professional team to provide comprehensive one-step service for you.
We can provide
Customer can choose the motor according to our already designed slewing drive connect dimension.
We can customized the connection dimension according to customer's motor connect dimension.
We can help to provide the whole parts with Hydraulic motor, DC motor, AC motor, Stepper or Servo motor.
FAQ
1. You are a trader or a manufacture?
We are an industry and trade integration business, our factory located on Changzhou City.
2. How about the payment terms?
We usually accept T/T or L/C. other terms also could be negotiated.
3. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pc.
4. What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 45~50 days.
5. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
Performance Table of SE21
| Model | horizontal inch worm drive |
| Ratio | 125:1 |
| IP Grade | IP66 |
| Rated Output Torque | 16 kNm |
| Tilting Torque | 271 kNm |
| Axial Load | 1600 kN |
| Radial Load | 640 kN |
| Holding Torque | 65 kNm |
| Efficiency | 40% |
| Precision | ≤0.1 ° |
| Self-locking | Yes |
| Weight | 140 kg |
| Working Temperature | -30～+120 ℃ |
